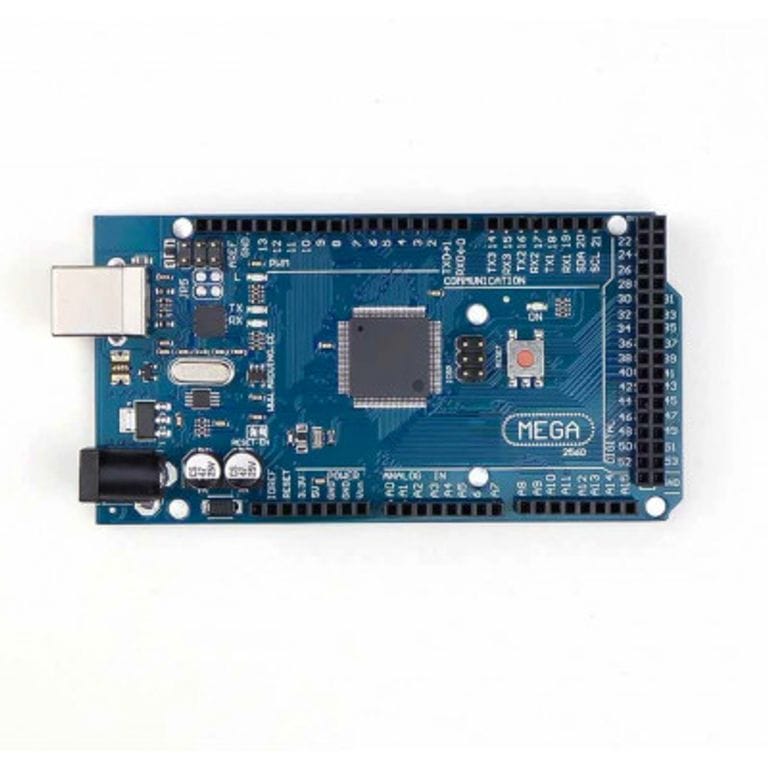

<p>The Mega 2560 R3 is an open source precise microcontroller board Successor to the Mega based on the ATmega2560 SMD chip.The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.</p>
<p>This Board has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Using the board is also very easy, simply connect it to a computer with a USB cable or power it with DC adapter or battery to get started. The Mega 2560 R3 board is compatible with most shields designed for Genuino Uno and the former boards Duemilanove or Diecimila.</p>
<p>&nbsp;</p>
<p>Specifications:-</p>
<p>&nbsp;</p>
<ul>
<li>Microcontroller: ATmega2560</li>
<li>Operating Voltage: 5V</li>
<li>Input Voltage (recommended): 7-12V</li>
<li>Input Voltage (limits): 6-20V</li>
<li>Digital I/O Pins: 54 (of which 15 provide PWM output)</li>
<li>Analog Input Pins: 16</li>
<li>DC Current per I/O Pin: 40 mA</li>
<li>DC Current for 3.3V Pin: 50 mA</li>
<li>Flash Memory: 256 KB of which 8 KB used by bootloader</li>
<li>SRAM: 8 KB</li>
<li>EEPROM: 4 KB</li>
<li>Clock Speed: 16 MHz</li>
<li>USB Host Chip: MAX3421E</li>
<li>Length:101.98mm/4.01in</li>
<li>Width:53.63mm/2.11in</li>
<li>Height:15.29mm/0.60in</li>
</ul>
<br>
<p>&nbsp;</p>
<p>Applications:-</p>
<p>Robotics, DIY Kit and Projects that require High Speed Processing.</p>
<p>&nbsp;</p>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

Mega 2560 R3 Board - Compatible Model High Quality

<div class="tab-content">
<div id="tab-description" class="tab-pane active">

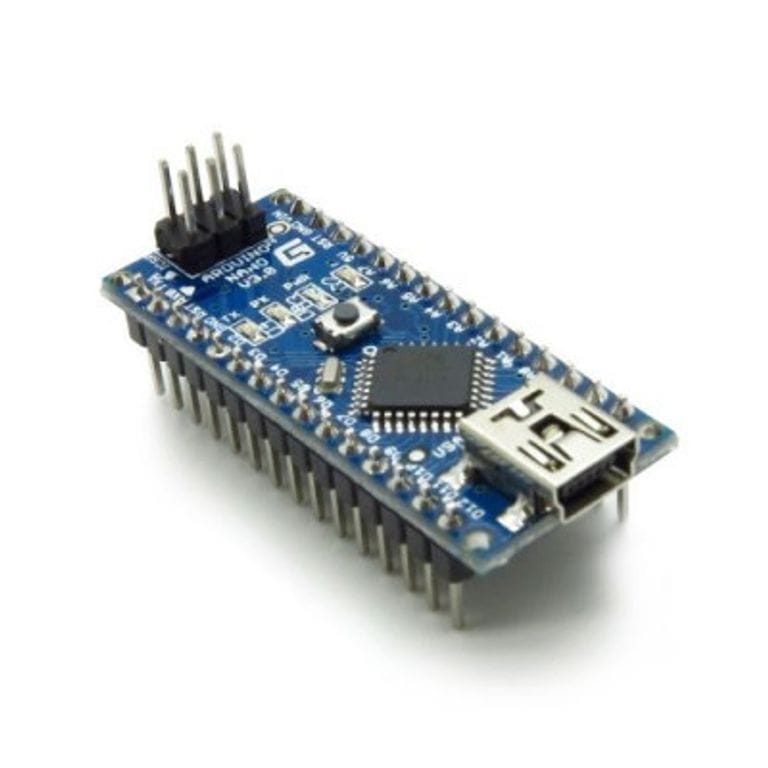

<p>NANO Version 3 is the open source smallest Embedded Development board based on Atmega328 SMD Package Microcontroller. It is a Surface mount Breadboard Friendly board integrated with Mini USB Port. DC Power Jack is not available on this Board, so power can be given through Mini USB Cable. It automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.</p>
<p>&nbsp;</p>
<p>Specifications:-</p>
<p>&nbsp;</p>
<ul>
<li>Microcontroller &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Atmel ATmega328 SMD Package</li>
<li>Operating Voltage (logic level) &nbsp;5 V</li>
<li>Input Voltage (recommended) &nbsp;7-12 V</li>
<li>Input Voltage (limits) &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 6-20 V</li>
<li>Digital I/O Pins &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;14 (of which 6 provide PWM output)</li>
<li>Analog Input Pins &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;8</li>
<li>DC Current per I/O Pin &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;40 mA</li>
<li>Flash Memory &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 32 KB (of which 2KB used by bootloader)</li>
<li>SRAM &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 2 KB</li>
<li>EEPROM &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 1 KB</li>
<li>Clock Speed &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; 16 MHz</li>
<li>Dimensions &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;0.70&rdquo; x 1.70&rdquo;</li>
</ul>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

NANO V3.0 Development Board - Clone Compatible Model

<div class="tab-content">
<div id="tab-description" class="tab-pane active">

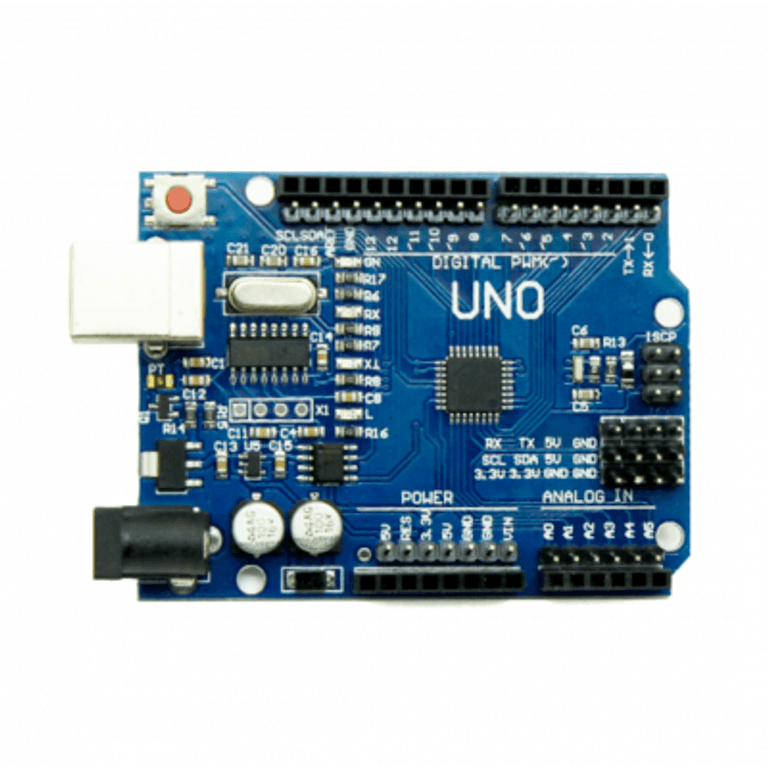

<p>UNO R3 SMD is the open source Embedded Development board based on Atmega328 SMD Package Microcontroller.&nbsp;Because Atmel is moving more and more of their production capacity to surface mount ICs, the DIP packaged ATmega is becoming more and more difficult to get. To keep up with demand, we now offer the Uno R3 with an SMD ATmega. The board is identical to the PTH version of the Uno, but you won't be able to remove the ATmega without some hot-air. This change shouldn't affect most users</p>
<p><br>Specifications:-</p>
<p>Microcontroller : ATmega328 SMD.</p>
<p>Operating Voltage : 5V.</p>
<p>Supply Voltage recommended : &nbsp;7-12V DC.</p>
<p>Digital I/O Pins : 14 (of which 6 provide PWM output).</p>
<p>Analog Input Pins : 6.</p>
<p>DC Current per I/O Pin : 40 mA.</p>
<p>DC Current for 3.3V Pin : 50 mA.</p>
<p>Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader.</p>
<p>SRAM : 2 KB (ATmega328).</p>
<p>EEPROM : 1 KB (ATmega328).</p>
<p>Clock Speed : 16 MHz.</p>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

UNO R3 SMD Atmega328P Board - Clone Compatible Model

<div class="tab-content">
<div id="tab-description" class="tab-pane active">

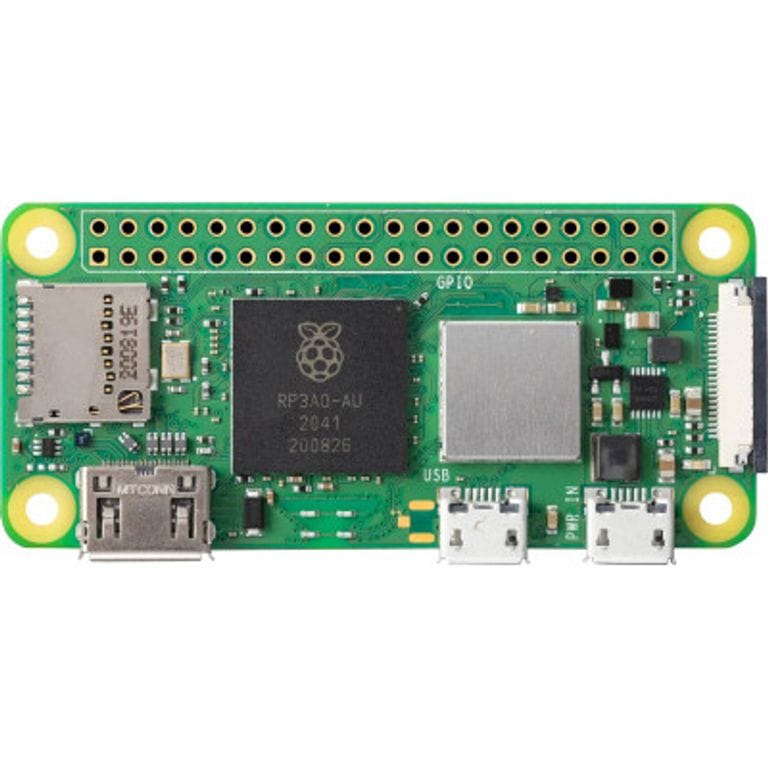

<p>The Raspberry has launched the brand new Raspberry Pi Zero 2 W which is the newest version to Raspberry Pi Zero W. Day by Day raspberry pi has reduced its dimensions with flawless technology into it this time the&nbsp;<strong>RPI Zero 2 W</strong>&nbsp;comes with a size of only&nbsp;<strong>65mm long by 30mm wide</strong>&nbsp;and at a very economical price. With the addition of wireless LAN and Bluetooth, the Raspberry Pi Zero W2 is ideal for making embedded Internet of Things (IoT) projects. The&nbsp;<strong>Pi Zero W2 has been designed to be as flexible and compact as possible with mini connectors and an unpopulated 40-pin GPIO</strong>, allowing you to use only what your project requires.</p>
<p>At the heart of the Raspberry Pi Zero W is a&nbsp;<strong>1GHz BCM2710A1</strong>&nbsp;with&nbsp;<strong>64-bit ARM Cortex-A53 CPU</strong>&nbsp;with&nbsp;<strong>512MB RAM</strong>. Quite frankly, this Pi is about four times faster than the original Raspberry Pi and is only a fraction of the cost of the current RPi3.</p>
<p>&nbsp;</p>
<h4>Features:</h4>
<ol>
<li>Raspberry Pi-designed System-in-Package, which integrates the BCM2710A1 die used in Raspberry Pi 3 with 512MB of RAM.</li>
<li>HAT-compatible 40-pin header</li>
<li>Composite video and reset pins via solder test points</li>
<li>CSI camera connector</li>
<li>VideoCore IV GPU</li>
</ol>
<br><br>
<h4><strong>Specifications :-</strong></h4>
<table class="shop_attributes woocommerce-group-attributes-layout-2">
<tbody>
<tr>
<td class="attribute_name">Processor</td>
<td class="attribute_value">
<p>ARM Cortex-A53</p>
</td>
</tr>
<tr class="alt">
<td class="attribute_name">Input Voltage (V)</td>
<td class="attribute_value">
<p>5V DC 2.5A</p>
</td>
</tr>
<tr>
<td class="attribute_name">RAM</td>
<td class="attribute_value">
<p>512 MB</p>
</td>
</tr>
<tr class="alt">
<td class="attribute_name">GPIO</td>
<td class="attribute_value">
<p>40 Pins</p>
</td>
</tr>
<tr>
<td class="attribute_name">Micro-SD Card Slot</td>
<td class="attribute_value">
<p>Yes</p>
</td>
</tr>
<tr class="alt">
<td class="attribute_name">WIFI</td>
<td class="attribute_value">
<p>802.11 b/g/n</p>
</td>
</tr>
<tr>
<td class="attribute_name">Bluetooth Version</td>
<td class="attribute_value">
<p>4.2</p>
</td>
</tr>
<tr class="alt">
<td class="attribute_name">Operating Temperature Range (C)&nbsp; &nbsp; &nbsp;&nbsp;</td>
<td class="attribute_value">
<p>-20 to 70</p>
</td>
</tr>
<tr class="">
<td class="attribute_name">&nbsp;</td>
<td class="product_weight attribute_value">&nbsp;</td>
</tr>
</tbody>
</table>
<h4><strong>Package Includes:</strong></h4>
<p>1 x Raspberry Pi Zero 2 W</p>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

Raspberry Pi Zero 2 W

<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<p>After Huge Success of Raspberry Pi 3 Model B, Raspberry Pi Foundation has launched a new upgraded version of this model i.e Raspberry Pi 3 Model B Plus(+). It has an updated 64-bit quad core processor running at 1.4GHz with built-in metal heatsink, dual-band 2.4GHz and 5GHz wireless LAN, faster (300 mbps) Ethernet, and PoE capability via a separate PoE HAT.</p>
<p>It has 1GB of RAM, faster dual-band 802.11 b/g/n/ac wireless LAN, Bluetooth 4.2, and significantly faster 300Mbit/s ethernet. The Pi 3 B+ is to provide with the same Pi as before, but now with Gigabit and PoE capable Ethernet, as well as better overheating protection for the 64-bit processor.</p>
<p>&nbsp;</p>
<p>Why choose Raspberry Pi 3 Model B+?</p>
<p>If you&rsquo;re looking for great speed and connectivity, the Raspberry Pi 3 Model B+ is for you. Whether you want to learn computer programming, or trying to incorporate Internet-of-things into your workplace, the B+ model can help you achieve your goals.&nbsp;</p>
<p>It would be impossible to tell you everything that a Raspberry Pi can do as, with some help from add-on devices, there are no limits to your imagination. From media players to full IOT integration, education to gaming, monitoring working conditions to work productivity, and even controlling your own robot, Raspberry Pi covers a huge range of applications.</p>
<p>&nbsp;</p>
<p>Pi 3 Model B vs. Pi 3 Model B+</p>
<p>The new B+ board is actually uses the same footprint as the previous B model and the Raspberry Pi 2. Therefore you can use it as an upgrade to existing projects or even use most existing cases.&nbsp;</p>
<p>The new B+ model features upgraded board components to help your applications and calculations run faster and smoother.&nbsp;</p>
<p>The B+ also features an exciting 64-bit quad core processor running at least 10% faster than the previous model. It also has improved thermal management.</p>
<p>&nbsp;</p>
<p>Specifications:-</p>
<p>&nbsp;</p>
<ul>
<li>Processor: Broadcom BCM2837 Processor Quad core A53 (ARM v8) 64-bit SoC</li>
<li>Memory: 1GB LPDDR2 SDRAM&nbsp;</li>
<li>Bluetooth: Cypress BLE chip 2.4Ghz/5.0GHz IEEE 802.11ac</li>
<li>Ethernet: Gigabit Ethernet over USB 2.0 (300Mbps max)</li>
<li>USB: Four USB 2.0 ports</li>
<li>Connection: GPIO Header 40-pin</li>
<li>HDMI: 1 x full size</li>
<li>Video: MIPI DSI display port, MIPI CSI camera port &amp; 4 Pole stereo output and composite video port</li>
<li>Multimedia: H.264, MPEG-4 decode (1080p30). H.264 encode (1080p30). OpenGL ES 1.1, 2.0 graphics.</li>
<li>Storage: microSD card slot for loading operating system and data storage</li>
<li>Power: USB connector for 5.1V / 2.5A dc</li>
<li>POE enabled</li>
</ul>
<p>&nbsp;</p>
<p>&nbsp;</p>
<p>&nbsp;</p>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

Raspberry Pi 3 - Model B+ - 1.4Ghz 64Ghz Processor with 1 GB Ram (Original)

<div class="tab-content">
<div id="tab-description" class="tab-pane active">
<p>Overview:-</p>
<p>The BeagleBone Black (BBONE-BLACK-4G)&nbsp;is a low cost, high-expansion focused BeagleBoard using a low cost Sitara&trade; AM3358 ARM&reg; Cortex&trade;-A8 processor from Texas Instruments.The&nbsp;BBONE-BLACK-4G&nbsp;features TI's&nbsp;Sitara&trade; AM3358AZCZ100 microprocessor, which is based on ARM&reg;Cortex&trade;-A8&nbsp;core with enhanced image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS.&nbsp;The board is equipped with 256Mb x16 DDR3L 4Gb (512MB) SDRAM, 32KB EEPROM, and 4GB embedded MMC (eMMC) Flash as the default boot source. The board is also populated with a single microSD connector to act as a secondary boot source for the board and, if selected as such, can be the primary boot source. The BeagleBone Black supports four boot modes, including eMMC boot, microSD boot, serial boot, and USB boot. A switch is provided to allow switching between the modes.</p>
<p>&nbsp;</p>
<p>BeagleBone Black Rev. C&nbsp;Features :-</p>
<ul>
<li>Processor:</li>
<li>&nbsp;&nbsp;&nbsp;TI Sitara AM3358AZCZ100, 1GHz, 2000 MIPS
<ul>
<li>1 GHz ARM&reg;Cortex&trade;-A8</li>
<li>SGX530 Graphics Engine</li>
<li>Programmable Real-Time Unit Subsystem</li>
</ul>
</li>
<li>Memory:
<ul>
<li>SDRAM: 512MB DDR3L 800MHZ</li>
<li>Onboard Flash: 4GB, 8bit Embedded MMC (eMMC)</li>
</ul>
</li>
<li>SD/MMC Connector for microSD:</li>
<li>Power management:TPS65217C PMIC is used along with a separate LDO to provide power to the system</li>
<li>Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header</li>
<li>Power Source:
<ul>
<li>miniUSB USB or DC Jack</li>
<li>5VDC External Via Expansion Header</li>
</ul>
</li>
<li>Connectivity:
<ul>
<li>High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB</li>
<li>High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS/FS/HS</li>
<li>Serial Port: UART0 access via 6 pin 3.3V TTL Header. Header is populated</li>
<li>10/100M Ethernet (RJ45)</li>
</ul>
</li>
<li>User Input / Output:
<ul>
<li>Reset Button</li>
<li>Boot Button</li>
<li>Power Button</li>
<li>LED power indicator</li>
<li>4 user configurable LEDs</li>
</ul>
</li>
<li>Video/Audio Interfaces:
<ul>
<li>HDMI D type interface</li>
<li>LCD interface</li>
<li>Stereo audio over HDMI interface</li>
</ul>
</li>
<li>Expansion Interfaces:
<ul>
<li>LCD, UART, eMMC</li>
<li>ADC, I2C, SPI, PWM</li>
<li>Includes:</li>
<li>BeagleBone Black Board</li>
<li>miniUSB to USB Type A Cable</li>
<li>Quick Start Guide</li>
</ul>
</li>
</ul>
</div>
</div>
<p>* Product Images are shown for illustrative purposes only and may differ from actual product.</p>

BeagleBone Black Rev C
